Design Your Catheter
Use our interactive configurator to design your custom catheter specifications.
Loading configurator...
Smarter, Faster, More Reliable Catheter Design
Cath Calcs™ applies proven engineering rules and manufacturing constraints to give you exact design guidance before you place an order.
From liner sizing to braid or coil reinforcement to jacket construction, the software produces vendor-ready specifications that eliminate trial-and-error and reduce costly iteration cycles.

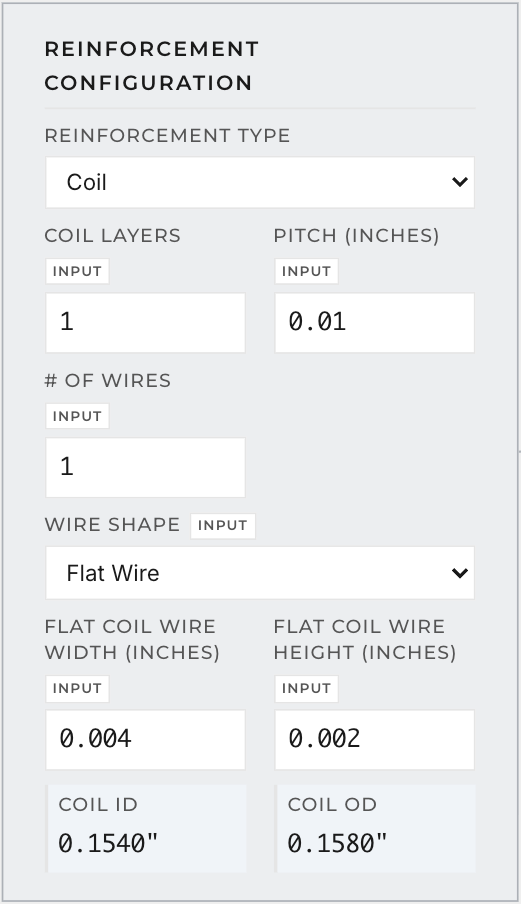

Reinforcement
Choose braid or coil and customize the wire dimensions

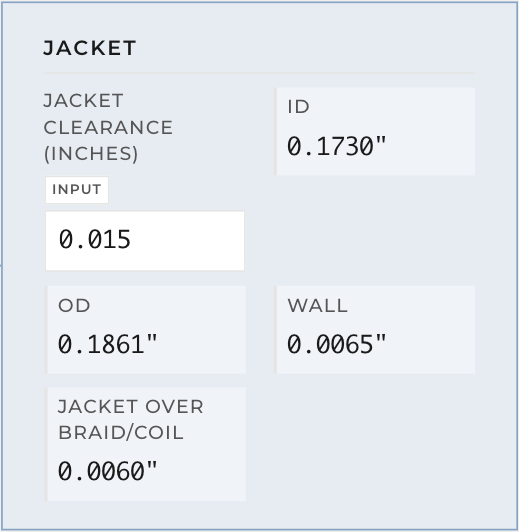

Jacket
Choose a clearance and jacket size is automatically calculated

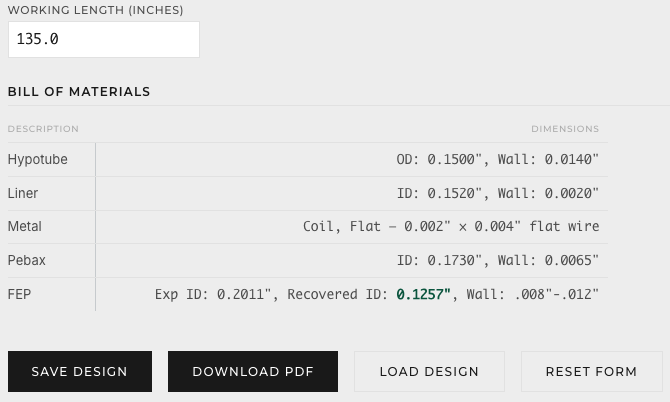

Bill of Materials
Auto-generates materials needed to produce the designed catheter

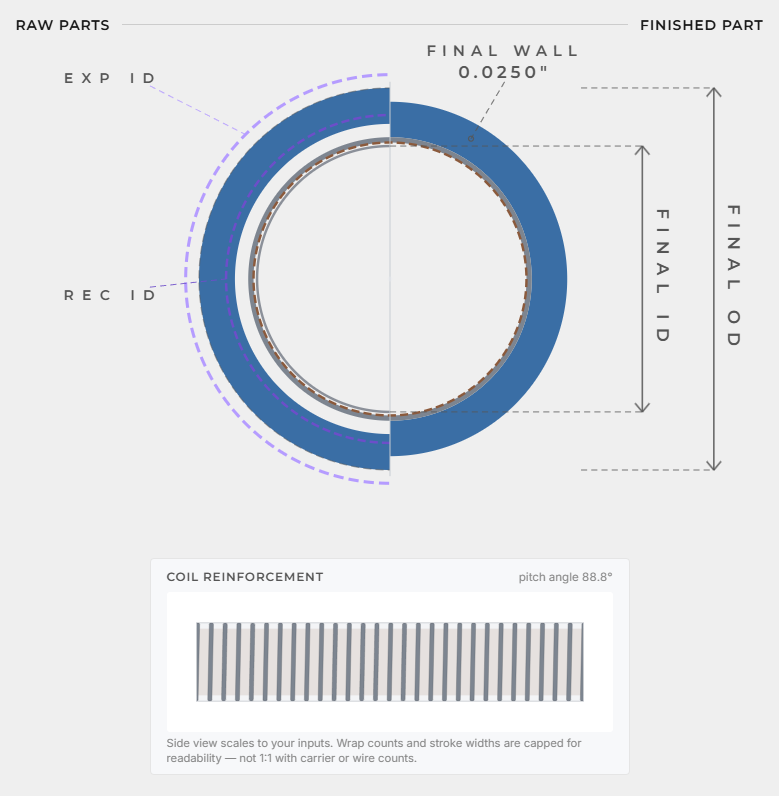

visualize your catheter before and after
Interactive Display
Stop wasting time and money on components that don’t build well.
Cath Calcs™ facilitates proper material dimensions and specification for raw materials as well as the finished part to give you the confidence to build
Request exclusive early access to Cath Calcs™
Ready to get started?
